Usage：

Essential oil extraction equipment is widely used in the extraction of conventional oils from flowers, grass, trees, leaves, slices, roots,seeds and animal materials.

Working Principle：

Essential oil is extracted by water distillation. Fresh or dried aromatic plant raw materials are put into the distiller, which is then heated and sent into steam to evaporate the plant essential oil. After the steam containing essential oil is collected and cooled through a conduit, the steam will be cooled into a liquid, and then separated according to the difference of specific gravity and density between the water and essential oil. Among the remaining water, some essential oils are more or less dissolved in it, which is the so-called flower water. Most of the essential oils are extracted in this way.

Characteristic：

1. This equipment uses steam distillation to separate or distill materials with common water.

2. This equipment is a super small steam distillation extraction equipment developed by our company according to the classic process

of essential oil extraction, combined with the advanced automatic control system. Reasonable structure design and superior performance. Simple and flexible operation, one person can easily complete the whole production.

3. The equipment is indirectly heated by heat transfer oil, which can reach 100。C high temperature quickly under the condition of cleanness, safety and atmospheric pressure.

4. The condensing part of the equipment has unique design and good condensing effect. The oil-water separation adopts the laboratory grade glass multi pipeline design, and the diameter of the glass pipeline is less than 20 mm. The oil-water separator with special structure is used for the separation and collection of essential oil.

5. The equipment has built-in multi-layer plate distillation blue, upper open cover structure, flower and grass placement, and cleaning equipment are very convenient.

Essential oil extraction machine is suitable for traditional Chinese medicine, healthcare products, bio-pharmaceutical, cosmetics, food and other industries. It is commonly used for the extraction and collection of aromatic oil and volatile oil of traditional Chinese medicine. It is a special equipment in the production of traditional Chinese medicine.

Essential oil extraction machine is using steam to distill raw material to extractor the active ingredient essential oil from the different raw material.

Machine composite：

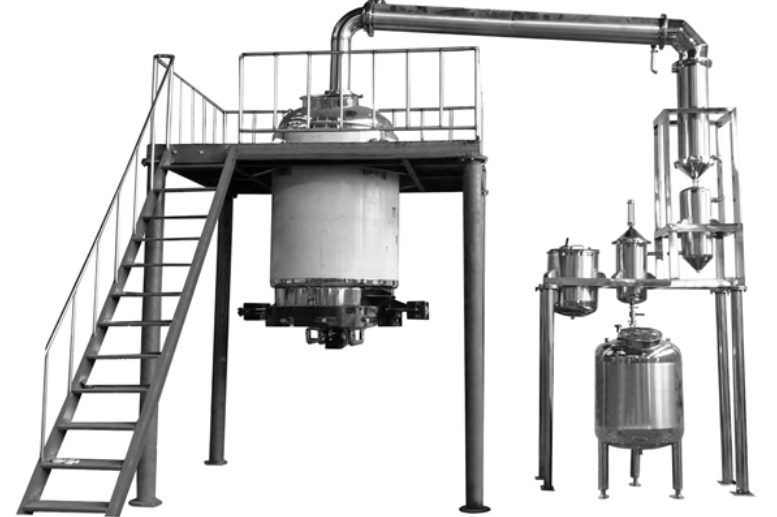

Essential oil extraction machine includes extractor distill tank ,condenser ,sub-cooler ,oil/water separator ,collection and pipeline.etc
