Product Description:
Usage：
Basket type extractor machine is widely used to extractor the raw material ,like the animal bone, organ viscera and distill flower oil,also used for the raw material which is not fit to the traditional extractor machine etc.
Working Principle：

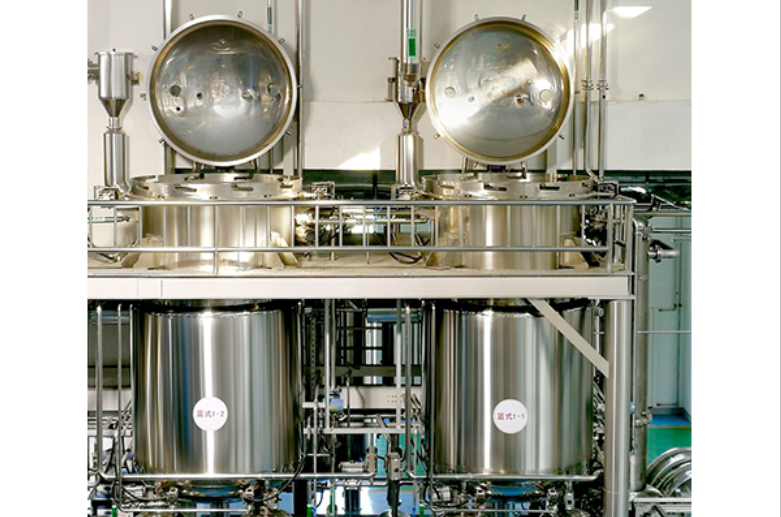

Basket type extractor machine is a new developed extractor machine,the extractor tank top end can open and close by the pneumatic cylinder for the raw material feeding basket take off and feed in. Basket type extractor machine can take the raw material from the top end by stainless steel basket ,the extractor solution can discharge form the tank bottom outlet nozzle.
Machine composite：
Basket type extractor tank includes the pressure type extractor tank (top can be open/closed by the pneumatic cylinder or hydraulic cylinder ),raw material feeding stainless steel basket ,condenser ,sub-cooler,oil/water separator filter ,pump and pipeline,control panel etc .
Compared with the traditional multifunctional extractor, the basket extractor has the following advantages:
1) The liner can withstand high pressure and high temperature, so as to save the extraction time.
2) The extracted residue can be taken out from the top of the extraction tank together with the rotating basket to avoid material blocking the liquid outlet.
3) In the traditional extraction process, flowers, pulp and raw materials containing viscosity are prone to filtration blockage and extraction liquid discharge difficulties. The device places raw materials in the basket to effectively avoid the above phenomenon.
4) fine powder particles can be packaged in a cloth bag, and then put the bag into a basket and put it into the extraction tank for extraction. After extraction, the used bag of fine powder particles can be completely removed, so it is also suitable for fine powder particle materials.
5) It is easy to realize feeding and automatic slag discharge.
6) stainless steel basket hole, liquid flow out quickly and smoothly, not easy to block the liquid outlet
7) Suitable for flower, leaf and other raw materials of aromatic oil distillation extraction, raw materials can be loaded into the basket, the tank bottom can be directly used steam distillation, can get a good oil extraction effect.
Basket type extractor machine capacity can be customized from 50L to 10000L ,also the system can make as manual control or PLC/HMI control .
Basket type extraction tank automatic control system contains the following control information:
1). Manage production information.
2). Feeding parameters.
3). Water or solvent feeding quantity control.
4) Temperature PID automatic control.
5). Heating time - temperature control
6). Control of extractor solution circulation.
7) Control of liquid flow.
8) Automatic control of cylinder and valve.
9) Data recording and data printing.
