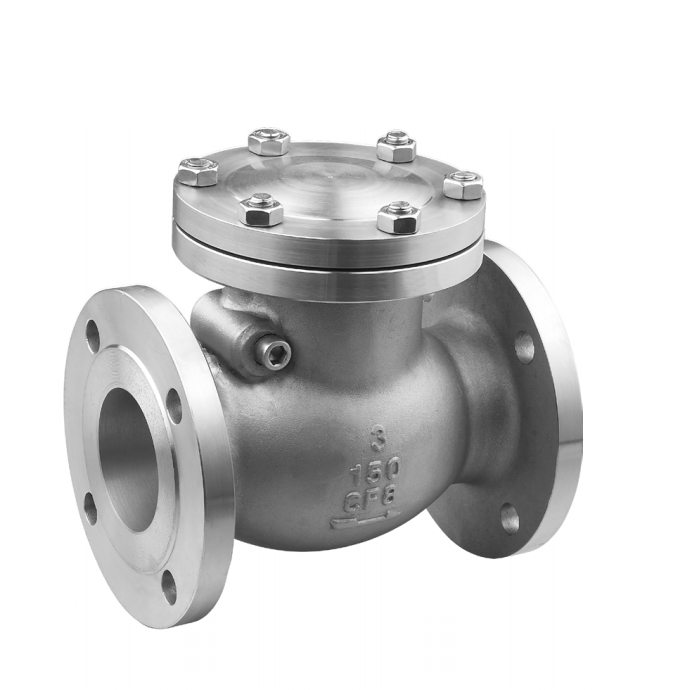

日标法兰止回阀
Swing Check Valve Flange Ends
Full Port JIS 10K
Model No.: YLJY-018
技术参数 Technical Specification
1. 生产设计标准 Basic Design and manufacture according to B2002
2. 结构长度 Face to-face according to B2002 10K Form 6
3. 法兰连接标准 Flange end according to B2212 10K
4. 检测标准：Inspection and tested according to JIS B2003

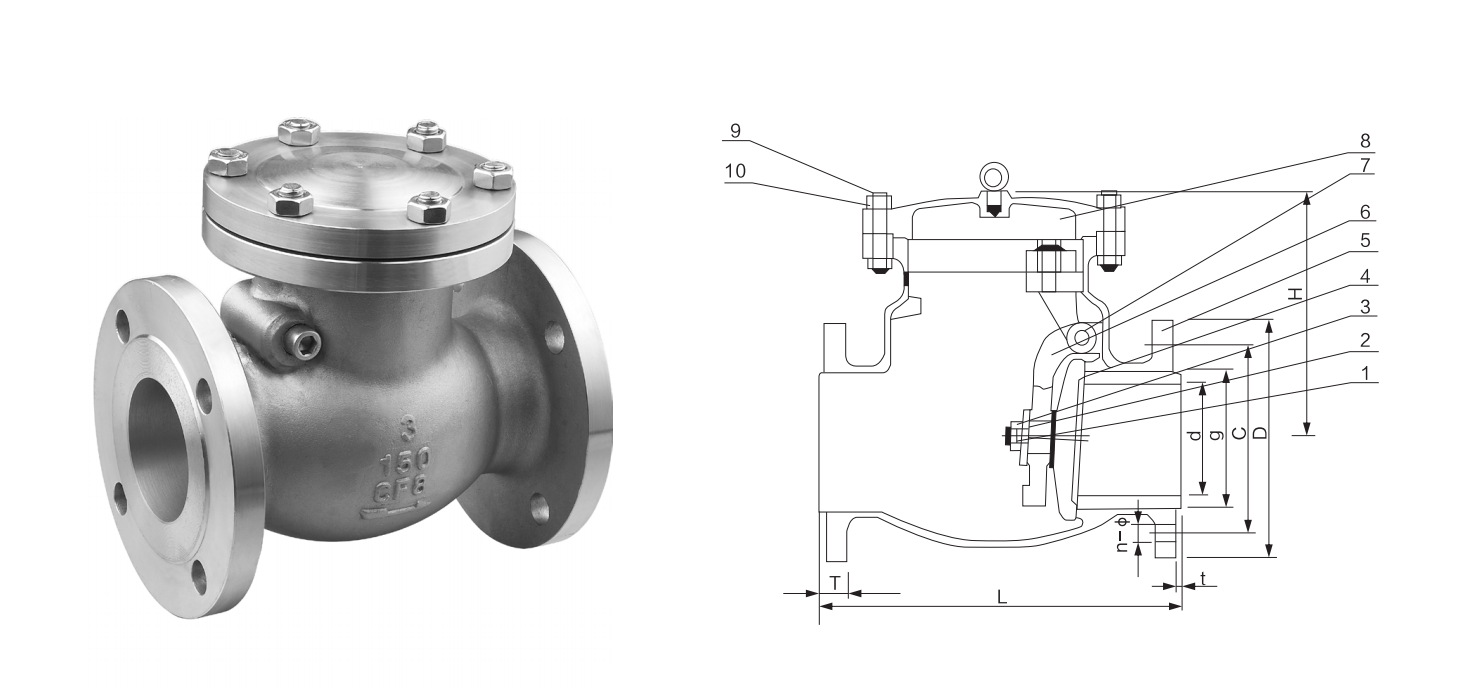

DN | L | D | C | d | G | n-Φ | T | t |
1-1/4" | 140 | 135 | 100 | 32 | 76 | 4-19 | 16 | 1 |
1-1/2" | 165 | 140 | 105 | 40 | 81 | 4-19 | 16 | 1 |
2" | 203 | 155 | 120 | 50 | 96 | 4-19 | 16 | 1 |
2-1/2" | 216 | 175 | 140 | 65 | 116 | 8-19 | 18 | 2 |
3" | 241 | 185 | 150 | 80 | 126 | 8-19 | 18 | 2 |
4" | 292 | 210 | 175 | 100 | 151 | 8-23 | 18 | 2 |
5" | 330 | 250 | 210 | 125 | 182 | 8-23 | 20 | 2 |
6" | 356 | 280 | 240 | 150 | 212 | 8-23 | 22 | 2 |
8" | 495 | 330 | 290 | 200 | 262 | 12-23 | 22 | 2 |
| No. | PARTS NAME | MATERIAL |
| 1 | Body 阀体 | SCS14A SCS13A SCPH2 |
| 2 | Disc 闸板 | SCS14A SCS13A SCPH2 |
| 3 | Gasket 填料 | GRAPHITE |
| 4 | Nut 螺帽 | A194-B8 |
| 5 | Bolt 螺栓 | A193-8 |
| 6 | Rocker arm 摇臂 | SCS14A SCS13A SCPH2 |
| 7 | Plug 插销 | GRAPHITE |
| 8 | Cap 阀盖 | SS304 |
| 9 | Nut 螺帽 | A194-B8 |
| 10 | Bolt 螺栓 | A193-8 |
