2PCS BALL VALVE
国标法兰球阀

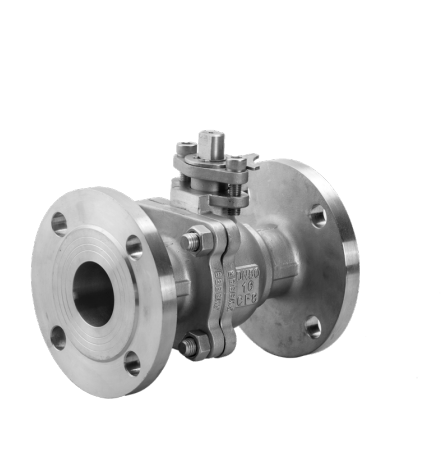

2-PC Stainless Steel Ball Valve Flange Ends
Full Port GB PN16/25/40/64
Model: YLJY-008
产品特点 Feature
1. 全通径 Full Port
2.16P-64P 法兰连接 GB 16P-64P Flange Connection
3. 连接尺寸 Size：1/2"to12"(DN15-300)
4. 阀门材质 Valve Body Material:Stainless Steel Aisi-316(EN10213 1.4408)(ASTM-A351-CF8M） Aisi-304(EN10213 1.4308)(ASTM-A351-CF8)
5. 防火设计 Fire-Safe Design
6. 带锁定功能手柄 Locking Device Handle
7. 阀杆防静电设计 Anti-Static Devices for ball-stem-body
8. 阀杆防脱出设计 Blow-out proof stem
9. 球槽上有泄压孔设计 Pressure balance hole in ball slot
DN | L(JB) | D(JB) | C | g | T | n-Φ | H |
PN2.5MPa | |||||||
15 | 130 | 95 | 65 | 45 | 16 | 4-14 | 103 |
20 | 140 | 105 | 75 | 55 | 16 | 4-14 | 112 |
25 | 150 | 115 | 85 | 65 | 16 | 4-14 | 123 |
32 | 165 | 135 | 100 | 78 | 18 | 4-18 | 150 |
40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 156 |
50 | 200 | 160 | 125 | 100 | 20 | 4-18 | 172 |
65 | 220 | 180 | 145 | 120 | 22 | 8-18 | 197 |
80 | 250 | 195 | 160 | 135 | 22 | 8-18 | 222 |
100 | 280 | 230 | 190 | 160 | 24 | 8-23 | 253 |
125 | 320 | 270 | 220 | 188 | 28 | 8-25 | 275 |
150 | 360 | 300 | 250 | 218 | 30 | 8-25 | 286 |
200 | 400 | 360 | 310 | 278 | 34 | 12-25 | 340 |
250 | 533 | 425 | 370 | 332 | 36 | 12-30 | 470 |
PN4.0MPa | |||||||
15 | 140 | 95 | 65 | 45 | 40 | 4-14 | 103 |
20 | 152 | 105 | 75 | 55 | 51 | 4-14 | 112 |
25 | 165 | 115 | 85 | 65 | 58 | 4-14 | 123 |
32 | 178 | 135 | 100 | 78 | 66 | 4-18 | 150 |
40 | 190 | 145 | 110 | 85 | 76 | 4-18 | 156 |
50 | 216 | 160 | 125 | 100 | 88 | 4-18 | 172 |
65 | 241 | 180 | 145 | 120 | 110 | 8-18 | 197 |
80 | 283 | 195 | 160 | 135 | 121 | 8-18 | 222 |
100 | 305 | 230 | 190 | 160 | 150 | 8-23 | 253 |
