2PCS BALL VALVE
国标法兰球阀
2-PC Stainless Steel Ball Valve Flange Ends
Full Port GB PN16/25/40/64
Model: YLJY-007
产品特点 Feature
1. 全通径 Full Port
2.16P-64P 法兰连接 GB 16P-64P Flange Connection
3. 连接尺寸 Size：1/2"to12"(DN15-300)
4. 阀门材质 Valve Body Material:Stainless Steel Aisi-316(EN10213 1.4408)(ASTM-A351-CF8M） Aisi-304(EN10213 1.4308)(ASTM-A351-CF8)
5. 防火设计 Fire-Safe Design
6. 带锁定功能手柄 Locking Device Handle
7. 阀杆防静电设计 Anti-Static Devices for ball-stem-body
8. 阀杆防脱出设计 Blow-out proof stem
9. 球槽上有泄压孔设计 Pressure balance hole in ball slot

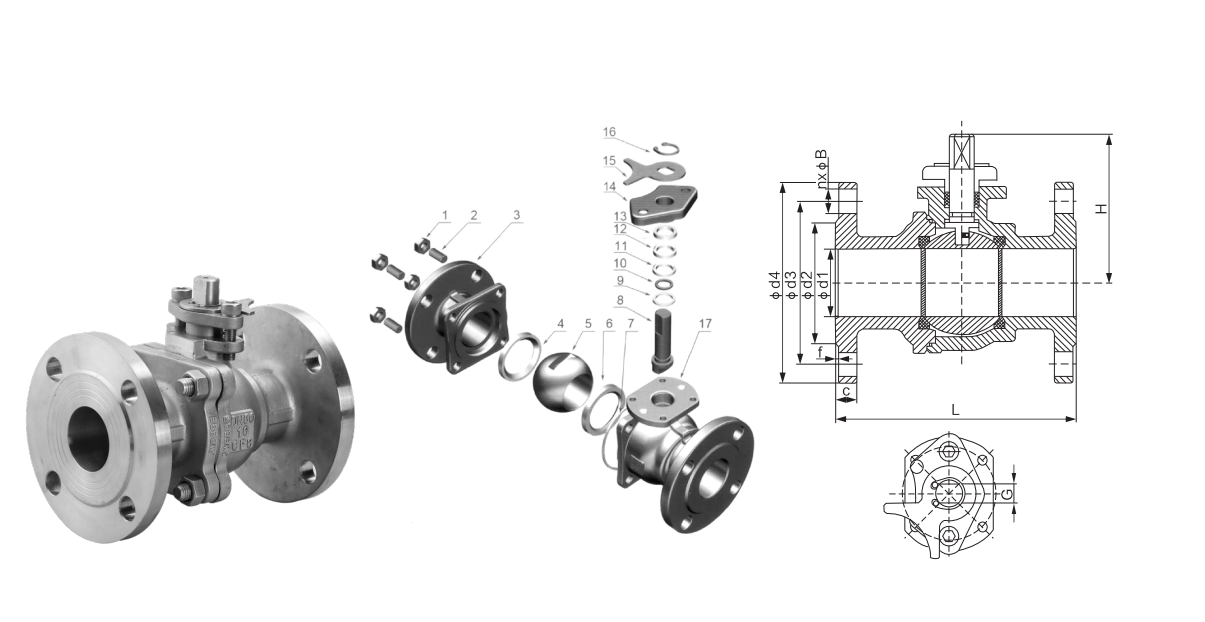

PN | DN | L(JB) | D(JB) | C | g | T | n-Φ | H |
15 | 130 | 95 | 65 | 45 | 14 | 4-14 | 78 | |
20 | 140 | 105 | 75 | 55 | 14 | 4-14 | 84 | |
25 | 150 | 115 | 85 | 65 | 14 | 4-14 | 95 | |
32 | 165 | 135 | 100 | 78 | 16 | 4-18 | 150 | |
40 | 180 | 145 | 110 | 85 | 16 | 4-18 | 150 | |
50 | 200 | 160 | 125 | 100 | 16 | 4-18 | 170 | |
1.6MPa | ||||||||
65 | 220 | 180 | 145 | 120 | 18 | 4-18 | 195 | |
80 | 250 | 195 | 160 | 135 | 20 | 8-18 | 215 | |
100 | 280 | 215 | 180 | 155 | 20 | 8-18 | 250 | |
125 | 320 | 245 | 210 | 185 | 22 | 8-18 | 265 | |
150 | 360 | 280 | 240 | 210 | 24 | 8-23 | 270 | |
200 | 400 | 335 | 295 | 265 | 24 | 12-23 | 330 |
| No. | PARTS NAME | MATERIAL |
| 1 | Nut 螺帽 | SS304 |
| 2 | Bolt 螺栓 | SS304 |
| 3 | Cap 阀盖 | 316 304 WCB |
| 4 | Seat 阀座 | PTFE RPTFE |
| 5 | Ball 球体 | 316 304 WCB |
| 6 | Seat 阀座 | PTFE RPTFE |
| 7 | Gasket 填料 | PTFE RPTFE |
| 8 | Stem 阀杆 | 316 304 WCB |
| 9 | Washer 垫圈 | PTEE |
| 10 | O-Ring O 型圈 | PTFE RPTFE |
| 11 | Packing 填料 | PTFE RPTFE |
| 12 | ||
| 13 | ||
| 14 | Gland 压盖 | SS304 |
| 15 | Stopper 定位栓 | SS304 |
| 16 | Locking Plate 锁扣 | SS304 |
| 17 | Body 阀体 | 316 304 WCB |
