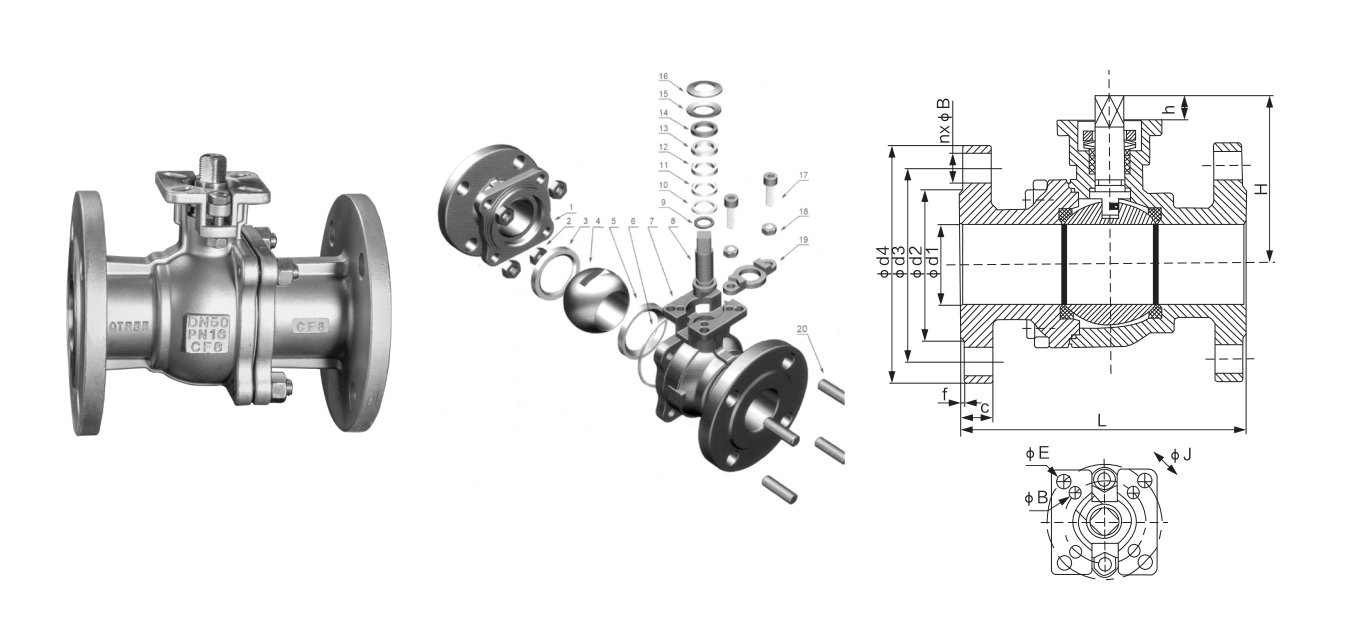

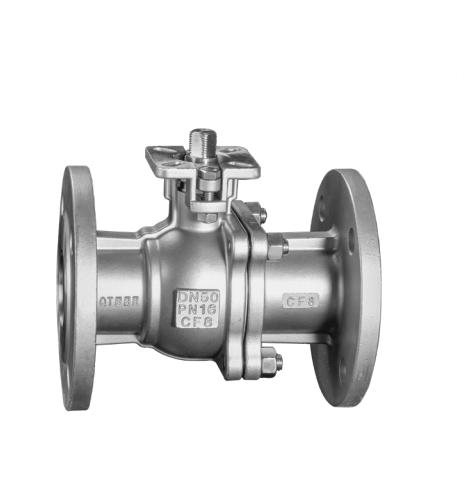

2PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad

国标法兰高平台球阀

2PCS Stainless Steel Ball Valve Flange Ends With High Mounting Pad

Full Port DIN PN16

产品特点 Feature

1. 全通径 Full Port

2.16P 法兰连接 GB 16P Flange Connection

3. 连接尺寸 Size：1/2"to8"(DN15-200)

4. 阀门材质 Valve Body Material:Stainless Steel SCS 304 SCS316 SCP H2

5. 防火设计 Fire-Safe Design

6. 采用 ISO5211 直接安装执行器平台设计 ISO 5211 Direct Mounting Pad

7. 带锁定功能手柄 Locking Device Handle

8. 阀杆防静电设计 Anti-Static Devices for ball-stem-body

9. 阀杆防脱出设计 Blow-out proof stem

10. 球槽上有泄压孔设计 Pressure balance hole in ball slot

技术参数 Technical Specification

技术规范：国标 Technical specification:GB

技术标准：GB/T12237 Design Standard:GB/T 12237

结构长度：GB/T 12221 Face to Face:GB/T 12221

连接法兰：GB/T 9113 JB 79 HG 20592

Flanged Ends:GB/T 9113 JB 79 HG20592

试验与检验：GB/T 13927 GB/T 26480 Test and Inspection:GB/T 13927 GB/T 26480
