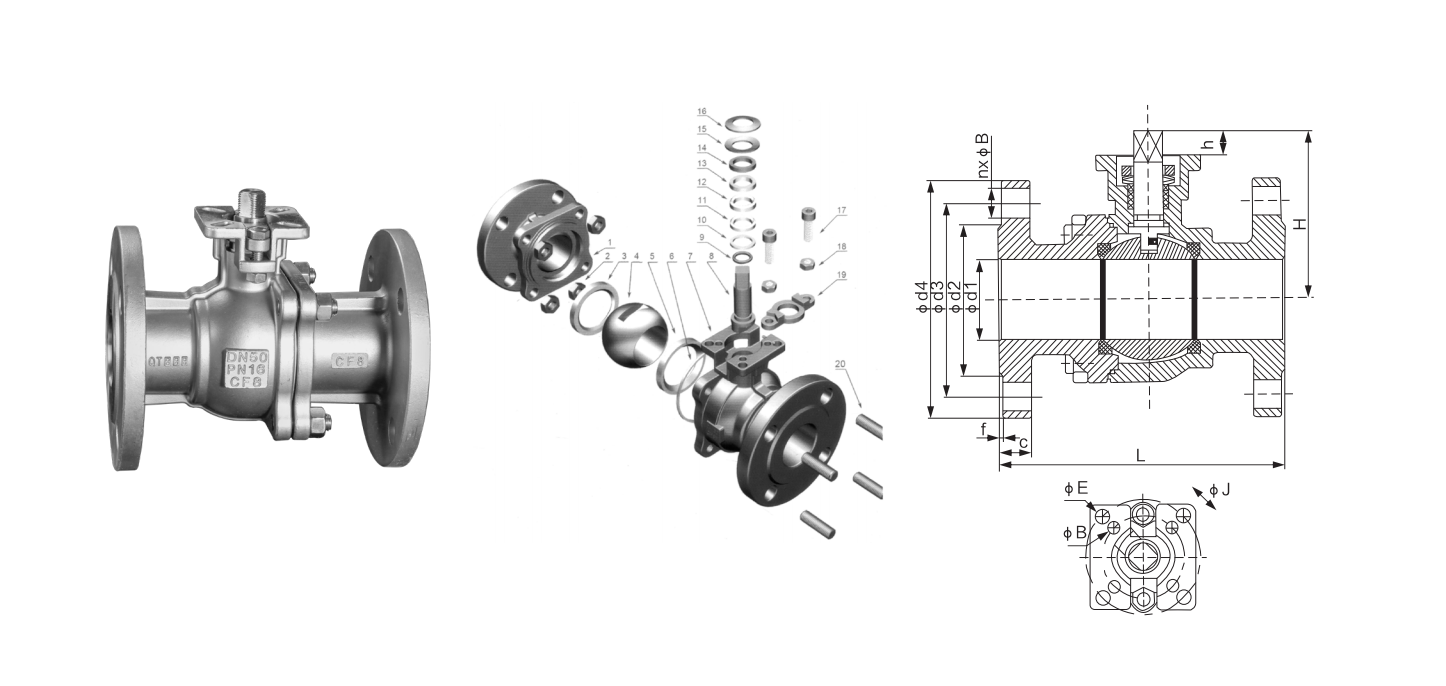

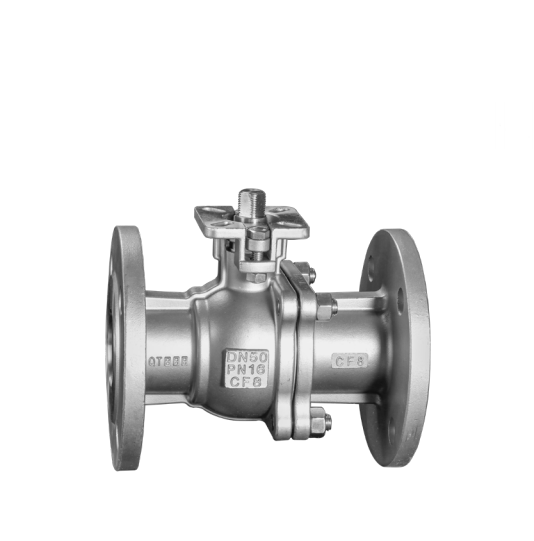

2PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad

德标法兰高平台球阀

2-PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad

Full Port DIN PN16/40

Model No.: YLJY-006

产品特点 Feature

1. 全通径 Full Port

2.PN16/40 法兰连接 DIN16/40 Flange Connection

3. 连接尺寸 Size：1/2"to8"(DN15-200)

4. 阀门材质 Valve Body Material:Stainless Steel 316 304 WCB

5. 防火设计 Fire-Safe Design

6. 采用 ISO5211 直接安装执行器平台设计 ISO 5211 Direct Mounting Pad

7. 带锁定功能手柄 Locking Device Handle

8. 阀杆防静电设计 Anti-Static Devices for ball-stem-body

9. 阀杆防脱出设计 Blow-out proof stem

10. 球槽上有泄压孔设计 Pressure balance hole in ball slot

技术参数 Technical Specification

1. 设计生产标准：Basic Design And Manufacture According To DIN3359 EN12516-1

2. 结构长度：Face-to Face According To DIN3202

3. 法兰连接标准 :Flange Ends According To DIN EN 1092-1

4. 检测标准：Inspection And Tested According To DIN3230 EN 12266
