2PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad

日标法兰高平台球阀

2-PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad

Full Port JIS 10K

Model No.： YLJY-004

产品特点 Feature

1. 全通径 Full Port

2.10K 法兰连接 JIS 10K Flange Connection

3. 连接尺寸 Size：1/2"to8"(DN15-200)

4. 阀门材质 Valve Body Material:Stainless Steel SCS 14A SCS13A SCP H2

5. 防火设计 Fire-Safe Design

6. 采用 ISO5211 直接安装执行器平台设计 ISO 5211 Direct Mounting Pad

7. 带锁定功能手柄 Locking Device Handle

8. 阀杆防静电设计 Anti-Static Devices for ball-stem-body

9. 阀杆防脱出设计 Blow-out proof stem

10. 球槽上有泄压孔设计 Pressure balance hole in ball slot

技术参数 Technical Specification

1. 设计生产标准：Basic Design And Manufacture According To B2002

2. 结构长度：Face-to Face According To B2002 10K Form 6

3. 法兰连接标准 :Flange Ends According To B2212 10K

4. 检测标准：Inspection And Tested According To JIS B2003

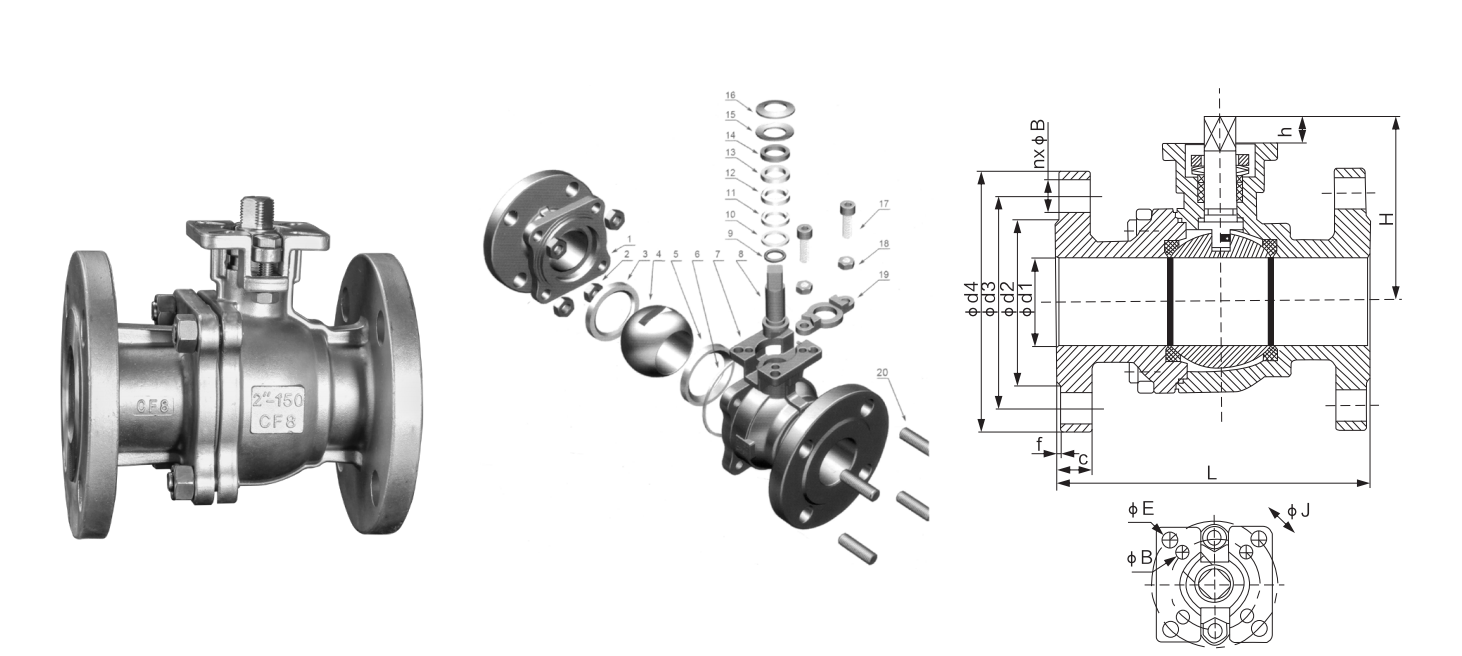

DN	Φd1	Φd2	Φd3	Φd4	nxΦB	L	H	h	C	f	ISO-5211		ΦB	ΦE	ΦJ
1/2"	15	34	60.3	90	4-16	108	108	4	14.1	1.6	F03	F04	6	6	9
3/4"	20	42.3	70	100	4-16	117	117	5	14.6	1.6	F04	F05	6	6	9
1"	25	50.5	79.4	110	4-16	127	127	10	14.6	1.6	F04	F05	8	6	11
1-1/4"	32	64	89	120	4-16	140	140	10	16.1	1.6	F04	F05	8	6	11
1-1/2"	40	73.2	98.4	130	4-19	165	165	14	18.5	1.6	F05	F07	10	8	14
2"	50	90	120.5	152	4-19	178	178	15.5	19	1.6	F05	F07	10	8	14
2-1/2"	65	106.2	139.6	180	4-19	190	190	16	21.1	1.6	F07	F10	12	10	17
3"	80	128.8	152.4	194	4-19	203	203	18	22.1	1.6	F07	F10	12	10	17
4"	100	159.7	190.5	233	8-19	229	229	20	25.1	1.6	F07	F10	12	10	19
5"	125	186	215.9	255	8-22	256	356	25	24	1.6	F10	F12	14	12	22
6"	150	216	241.4	278	8-22	394	394	28	25.3	1.6	F10	F12		PREVIOUS：2-PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad NEXT：2-PC Stainless Steel Ball Valve Flange Ends Inquiry: Product name: Add * Fax * Company Name * Quantity: Your Name: Tel: Email: Content: Send   Reset RELATED PRODUCTS: 2PC Stainless Steel Ball Valve Flange En 2-PC Stainless Steel Ball Valve Flange E Globe Valve Flange Ends CATEGORIES Stainless Steel Tank 不锈钢罐+ Extracting Machine 提取设备+ Gate Valve 闸阀+ Globe Valve 截止阀+ Check Valve 止回阀+ Ball Valve 球阀+ Butterfly Valve 蝶阀+ Strainer 过滤器+ Needle Valve 针型阀+ Sanitary Valves 卫生阀+ Forged Valve 锻钢阀门+ Flange 法兰+ Pipe & Fittings 管件+ LATEST NEWS CONTACT US Contact: Ms. Shiro Shao, Nicolas Zhang Phone: +86-13858768056, +86-13623462298 Tel: +86-577-55590380 Email: shiroshao@aliyun.com Add: ADD:RM614 ,BLOCK 6 ,WANDA PLAZA,YONGDINGROAD,LONGWAN,WENZHOU,CHINA Leave a message   online service     Whatsapp:86-13858768056    shiroshao@aliyun.com     Skype     22594644    We chat Top
