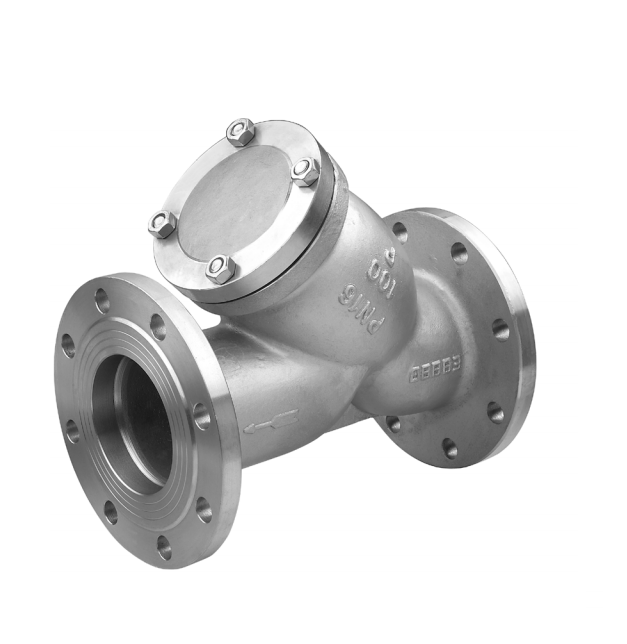

日标 Y 型法兰过滤器
Y-Type Strainer Flange Ends
Full Port JIS 10K
Model No.: YLJY019
技术参数 Technical Specification
1. 生产设计标准 Basic Design and manufacture according to B2002
2. 结构长度 Face to-face according to B2002 10K Form 6
3. 法兰连接标准 Flange end according to B2212 10K
4. 检测标准：Inspection and tested according to JIS B2003

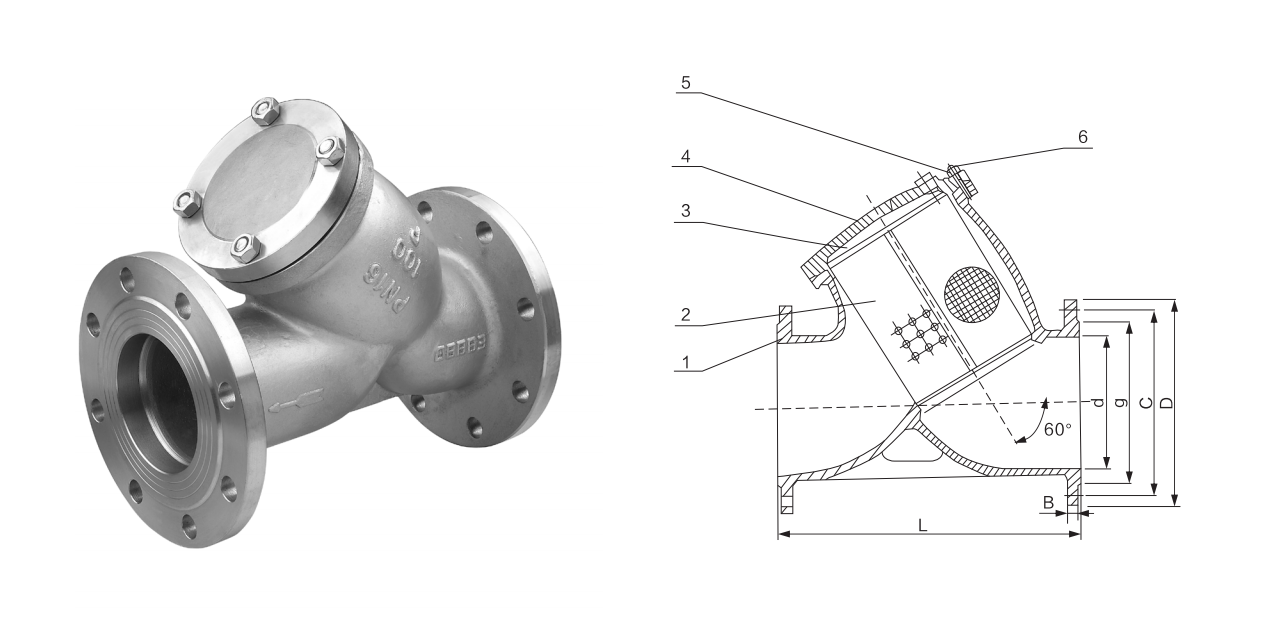

DN | D | L | d | g | c | B | t |
2-1/2" | 175 | 250 | 65 | 116 | 140 | 18 | 2 |
3" | 185 | 280 | 80 | 126 | 150 | 18 | 2 |
4" | 210 | 300 | 100 | 151 | 175 | 18 | 2 |
5" | 250 | 350 | 125 | 182 | 210 | 20 | 2 |
6" | 280 | 380 | 150 | 212 | 240 | 22 | 2 |
8" | 330 | 480 | 200 | 262 | 190 | 22 | 2 |
10" | 400 | 550 | 250 | 324 | 355 | 24 | 2 |
| No. | PARTS NAME | MATERIAL |
| 1 | Body 阀体 | SCS14A SCS13A SCPH2 |
| 2 | Screen 过滤网 | SUS304 |
| 3 | Cap 阀盖 | SCS14A SCS13A SCPH2 |
| 4 | Gasket 填料 | GRAPHITE |
| 5 | Nut 螺帽 | A194-B8 |
| 6 | Bolt 螺栓 | A193-8 |
