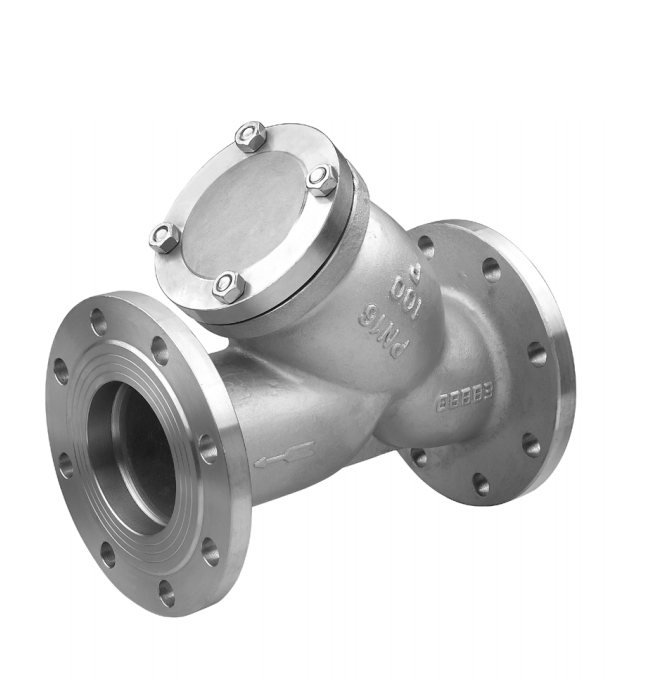

美标 Y 型法兰过滤器
Y-Type Strainer Flange Ends
Full Port ASME 150Lb
Model No.: YLJY-020
技术参数 Technical Specification
1. 生产设计标准 Basic Design and manufacture according to SAME B16.34
2. 结构长度 Face to-face according to ASME B16.10
3. 法兰连接标准 Flange end according to ASME B16.5
4. 检测标准：Inspection and tested according to API 598

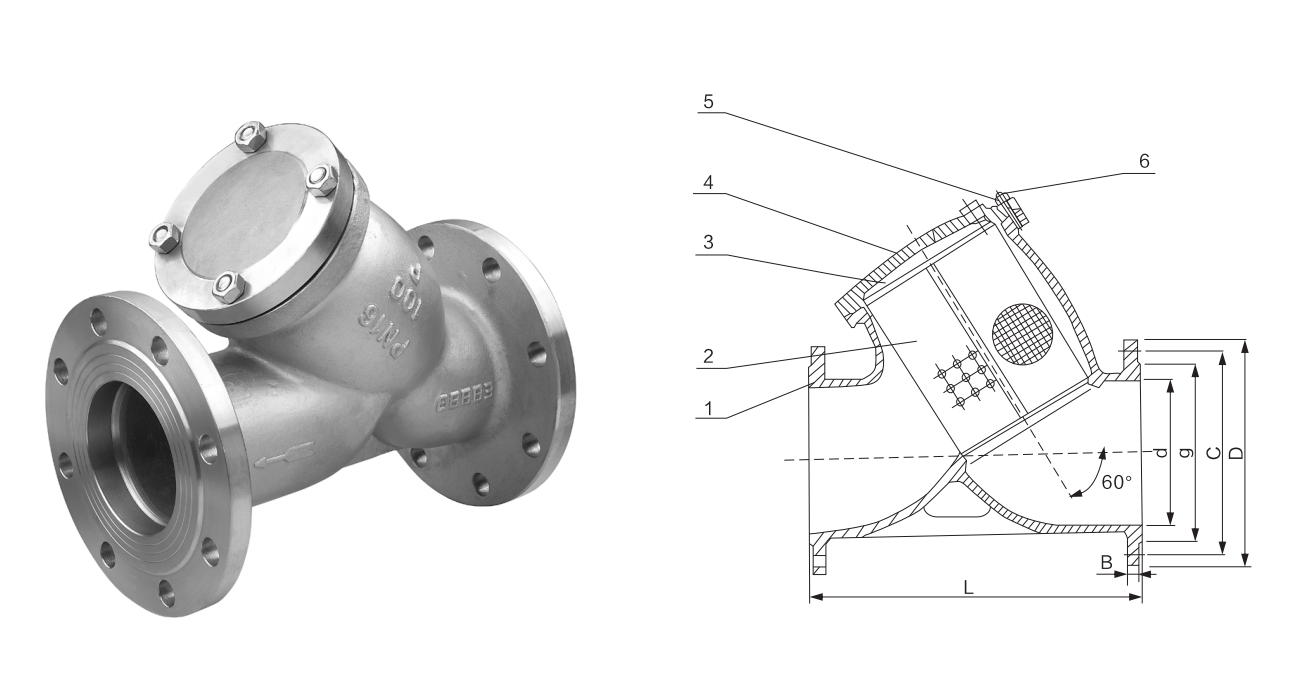

DN | H | L | D | C | d | g | B |
1-1/4" | 130 | 178 | 115 | 88.9 | 32 | 63.5 | 14.3 |
1-1/2" | 130 | 181 | 125 | 98.4 | 40 | 73.2 | 15.9 |
2" | 152 | 200 | 150 | 120.7 | 50 | 91.9 | 19 |
2-1/2" | 178 | 248 | 180 | 139.7 | 65 | 104.6 | 21 |
3" | 189 | 256 | 190 | 152.4 | 80 | 127 | 22.3 |
4" | 227 | 308 | 230 | 190.5 | 100 | 157.2 | 22.3 |
5" | 331 | 394 | 255 | 215.9 | 125 | 185.7 | 22.9 |
6" | 337 | 470 | 280 | 241.3 | 150 | 215.9 | 24 |
8" | 394 | 543 | 345 | 298.5 | 200 | 269.7 | 27 |
| No. | PARTS NAME | MATERIAL |
| 1 | Body 阀体 | CF8M CF8 |
| 2 | Screen 过滤网 | SUS304 |
| 3 | Cap 阀盖 | CF8M CF8 |
| 4 | Gasket 填料 | GRAPHITE |
| 5 | Nut 螺帽 | A194-B8 |
| 6 | Bolt 螺栓 | A193-8 |
