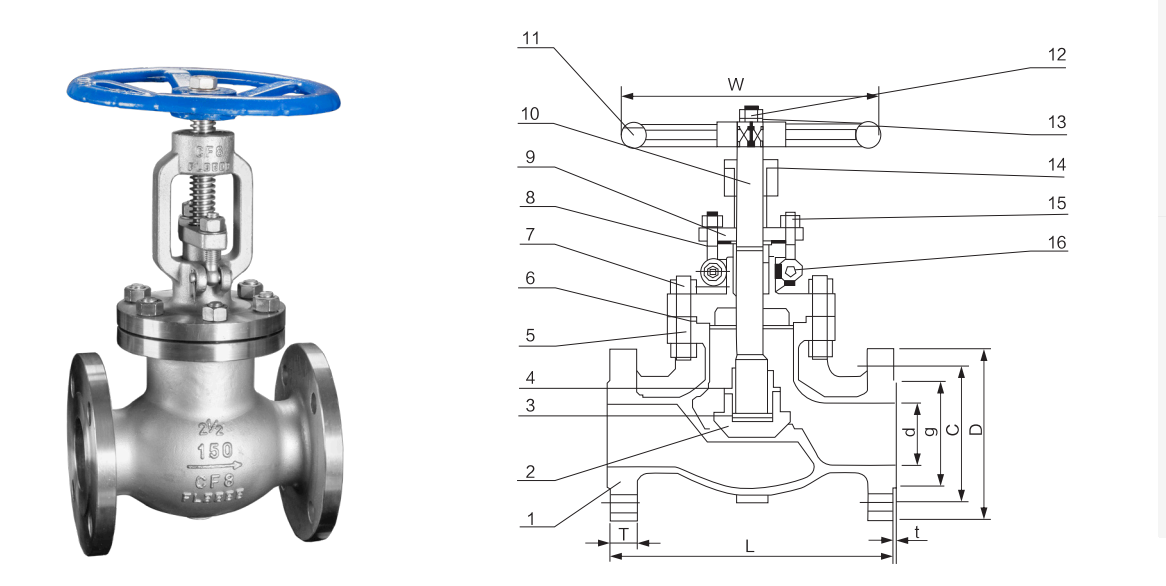

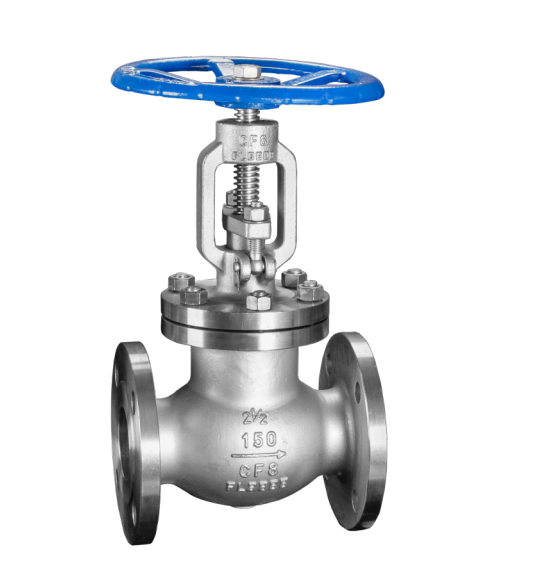

Globe Valve Flange Ends

Globe Valve Flange Ends


















Product Description:


美标法兰截止阀
Globe Valve Flange Ends
Full Port ASME 150Lb
Model No.: YLJY-014

产品特点 Feature
1. 法兰连接 Flange Connection
2. 全通径设计 Full port design
3. 精密铸造工艺 Investment cast body
4. 压力 10K/20K Pressure:150LB
5. 强度测试 Strength test:3.0Mpa
6. 气压 Gas seal test：0.6Mpa
7. 介质：水、油、气体、硝酸类、醋酸类
 Applicable Media:Water、Oil、Gas、Nitric acid Acetic acid
8. 连接尺寸 Size:1/2"-12"

技术参数 Technical Specification
1. 生产设计标准 Basic Design and manufacture according to ASME B16.34
2. 结构长度 Face to-face according to ASME B16.10
3. 法兰连接标准 Flange end according to ASME B16.5
4. 检测标准：Inspection and tested according to API 598
DN
H
W
D
L
d
g
c
T
t
1/2"
180
140
89
108
15
35
60.5
12.1
1.6
3/4"
190
140
98
117
20
43
70
12.1
1.6
1"
200
140
108
127
25
51
79.5
12.1
1.6
1-1/4"
245
160
117
140
32
64
89
12.7
1.6
1-1/2"
250
160
127
165
40
73
98.5
14.3
1.6
2"
260
200
152
203
50
92
120.5
15.9
1.6
2-1/2"
315
200
178
216
65
105
139.5
17.5
1.6
3"
330
250
190
241
80
127
152.5
19.1
1.6
4"
395
250
229
292
100
157
190.5
23.9
1.6
5"
450
300
254
356
125
186
216
23.9
1.6
6"
540
350
279
406
150
216
241.5
25.4
1.6
8"
675
350
343
495
200
270
298.5
28.6
1.6
10"
835
400
406
622
250
324
362
30.2
1.6
12"
985
400
483
698
300
368
432
31.8
1.6
No.PARTS NAMEMATERIAL
1Body 阀体CF8M CF8
2Disc 闸板CF8M CF8
3Half ring 对开环SS304
4Disc cover 阀瓣盖CF8M CF8
5Bolt 螺栓A193-B8
6Gasket 填料GRAPHITE
7Nut 螺帽A194-8
8Stem Packing 阀杆填料GRAPHITE
9Bonnet 阀体支架CF8M CF8
10Stem 阀杆SS304
11Wheel Handle 手轮QT4400-18
12Stem Nut 阀杆螺母SS304
13Nut 螺帽A194-8
14Bolt 螺栓SS304
15Washer 弹垫SS304
16Bolt 螺栓A193-8
17Locking Pin 锁销SS304
