美标法兰止回阀

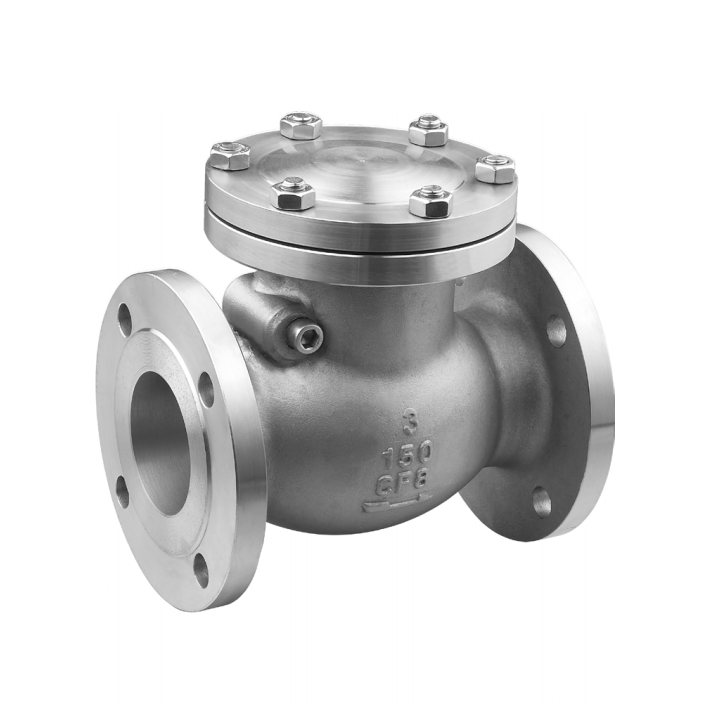

Swing Cleck Valve Flange Ends
Full Port ASME 150Lb
Model No.: YLJY-016
技术参数 Technical Specification
1. 生产设计标准 Basic Design and manufacture according to ASME B16.34
2. 结构长度 Face to-face according to ASME B16.10
3. 法兰连接标准 Flange end according to ASME B16.5
4. 检测标准：Inspection and tested according to API 598

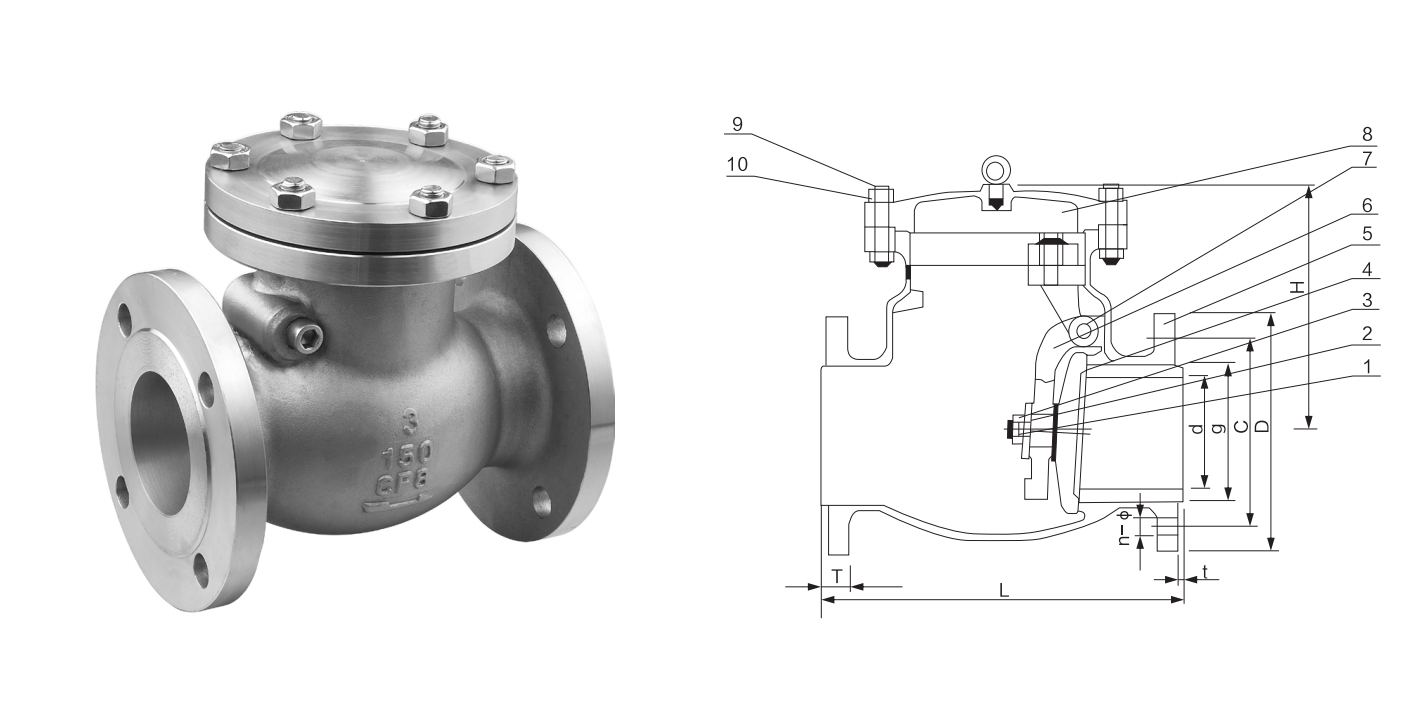

DN | H | L | D | C | d | g | n-Φ | T | t |
1-1/4" | 120 | 140 | 116 | 88.9 | 32 | 63.5 | 4-18 | 18 | 2 |
1-1/2" | 130 | 165 | 125 | 98.4 | 40 | 73.5 | 4-18 | 18 | 3 |
2" | 140 | 203 | 150 | 120.7 | 50 | 91.9 | 4-18 | 20 | 3 |
2-1/2" | 160 | 216 | 180 | 139.7 | 65 | 104.6 | 8-18 | 22 | 3 |
3" | 185 | 241 | 190 | 152.7 | 80 | 127 | 8-18 | 22 | 3 |
4" | 210 | 292 | 230 | 190.5 | 100 | 157.2 | 8-23 | 24 | 3 |
5" | 250 | 330 | 255 | 215.9 | 125 | 185.7 | 8-25 | 28 | 3 |
6" | 300 | 356 | 280 | 241.5 | 150 | 215.9 | 8-25 | 30 | 3 |
8" | 380 | 495 | 345 | 198.5 | 200 | 269.7 | 12-25 | 34 | 3 |
| No. | PARTS NAME | MATERIAL |
| 1 | Body 阀体 | CF8M CF8 |
| 2 | Disc 闸板 | CF8M CF8 |
| 3 | Gasket 填料 | GRAPHITE |
| 4 | Nut 螺帽 | A194-B8 |
| 5 | Bolt 螺栓 | A193-8 |
| 6 | Rocker arm 摇臂 | CF8M CF8 |
| 7 | Plug 插销 | GRAPHITE |
| 8 | Cap 阀盖 | SS304 |
| 9 | Nut 螺帽 | A194-B8 |
| 10 | Bolt 螺栓 | A193-8 |
