2PCS BALL VALVE
美标法兰高平台球阀

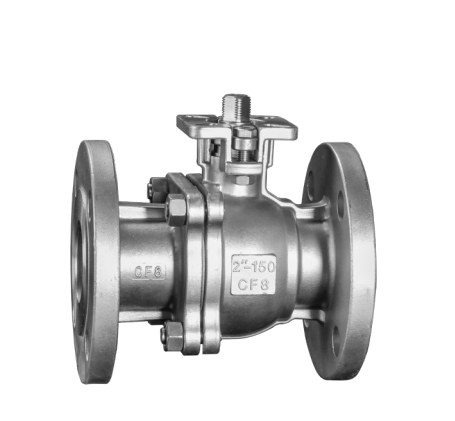

2-PC Stainless Steel Ball Valve Flange Ends With High Mounting Pad
Full Port 150Lb
型号： YLJY-002
产品特点 Feature:
1. 全通径 Full Port
2.150 磅法兰连接 ANSI Class 150 Flange Connection 3. 连接尺寸 Size：1/2"to8"(DN15-200)
1. 阀 门 材 质 Valve Body Material:Stainless Steel AISI-316(EN10213 1.4408)(ASTM-A351-CF8M) AISI-304(EN10213 1.4308)(ASTM-A351-CF8)
2. 防火设计 Fire-Safe Design
3. 采用 ISO5211 直接安装执行器平台设计 ISO 5211 Direct Mounting Pad
4. 带锁定功能手柄 locking device handle
5. 阀杆防静电设计 Anti-Static Devices for ball-stem-body
6. 阀杆防脱出设计 Blow-out proof stem
7. 球槽上有泄压孔设计 pressure balance hole in ball slot
技术参数 Technical Specification :
1. 设计生产标准 Basic Design And Manufacture According To ANSI B16.34
2. 结构长度 Face-to Face According To ANSI B16.10
3. 法兰连接标准 Flange Ends According To ANSI B16.5
4. 检测标准 Inspection And Tested According To Api598

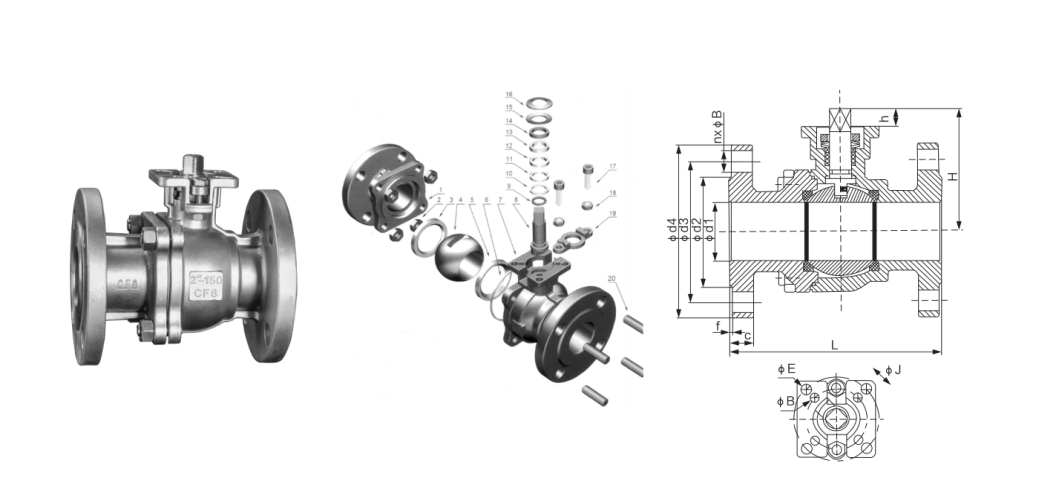

DN | Φd1 | Φd2 | Φd3 | Φd4 | nxΦB | L | H | C | f | G |
1/2" | 15 | 34 | 60.3 | 90 | 4-16 | 108 | 78 | 14.1 | 1.6 | 11 |
3/4" | 20 | 42.3 | 70 | 100 | 4-16 | 117 | 79 | 14.6 | 1.6 | 11 |
1" | 25 | 50.5 | 79.4 | 110 | 4-16 | 127 | 89 | 14.6 | 1.6 | 11 |
1-1/4" | 32 | 64 | 89 | 120 | 4-16 | 140 | 100 | 16.1 | 1.6 | 14 |
1-1/2" | 40 | 73.2 | 98.4 | 130 | 4-19 | 165 | 123 | 18.5 | 1.6 | 17 |
2" | 50 | 90 | 120.5 | 152 | 4-19 | 178 | 129 | 19 | 1.6 | 17 |
2-1/2" | 65 | 106.2 | 139.6 | 180 | 4-19 | 190 | 150 | 21.1 | 1.6 | 17 |
3" | 80 | 128.8 | 152.4 | 194 | 4-19 | 203 | 167 | 22.1 | 1.6 | 22 |
4" | 100 | 159.7 | 190.5 | 233 | 8-19 | 229 | 188 | 25.1 | 1.6 | 22 |
5" | 125 | 186 | 215.9 | 255 | 8-22 | 256 | 245 | 24 | 1.6 | 22 |
6" | 150 | 216 | 241.4 | 278 | 8-22 | 394 | 286 | 25.5 | 1.6 | 27 |
8" | 200 | 270 | 298.5 | 344 | 8-22 | 457 | 325 | 28.6 | 1.6 | 27 |
| No. | PARTS NAME | MATERIAL |
| 1 | Cap 阀盖 | CF8M CF8 |
| 2 | Nut 螺帽 | SS304 |
| 3 | Seat 阀座 | PTFE RPTFE |
| 4 | Ball 球体 | SS316 SS304 |
| 5 | Seat 阀座 | PTFE RPTFE |
| 6 | Gasket 填料 | PTFE RPTFE |
| 7 | Body 阀体 | CF8M CF8 |
| 8 | Stem 阀杆 | SS316 SS304 |
| 9 | O-Ring O 型圈 | VITON |
| 10 | Thrust Washer 防脱垫片 | PTFE RPTFE |
| 11 | Stem Packing | PTFE RPTFE |
| 12 | 阀杆填料 | |
| 13 | ||
| 14 | Washer 垫圈 | SS304 |
| 15 | Belleville | SS304 |
| 16 | Washer 垫圈 | |
| 17 | Stud Bolt 单头螺栓 | SS304 |
| 18 | Nut 螺帽 | SS304 |
| 19 | Gland 压盖 | SS316 SS304 |
| 20 | Bolt 螺栓 | SS304 |
