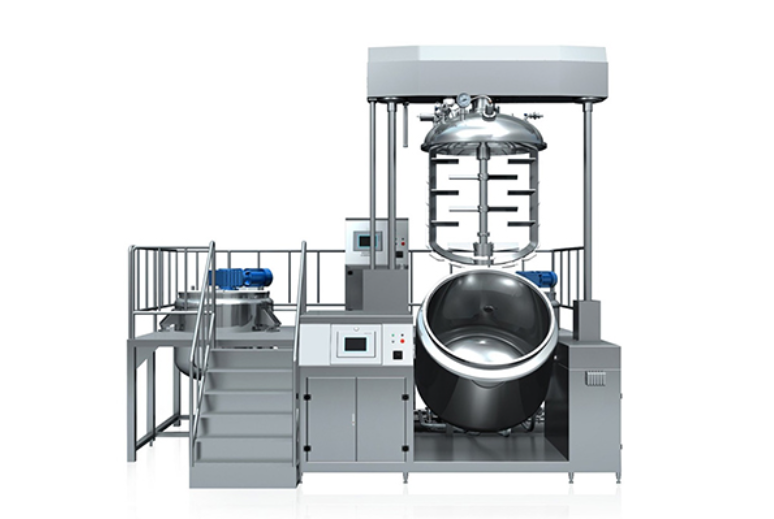

Vacuum Emulsifying Machine

Usage：Vacuum Emulsifying Machine is a complete vacuum mixer system for the manufacturing of ointment and cream in the cosmetic,pharmaceutical, food and chemical industries.Structure and technology specification :The whole equipment of this system is composed of parts below: emulsifying mixer tank ,oil phase tank ,Water phase tank , vacuum system, hydraulic system, electric control system etc.1.1 Emulsify mixer tank:Structure: With three-layer structure, upper and lower end sockets. The upper end socket is connected to the tank body with flange between them.In the mixer tank, there are 3 mixers:1.1.1 Cutting and vortex emulsify mixer: 1150-3500 rpm (frequency control)1.1.2 Low-speed frame type scraping mixer: 10-40 rpm (frequency control)1.1.3 Low-speed converse mixer, electric motor is the same as low-speed frame type scraping mixer's 10-40 rpm.1.1.4 Attached units of the tank: Liquid feed inlet with stainless steel pipe filter, solid adding material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, temperature sensor, CIP cleaning head, dust-proof sterile breathing device.1.2 Pretreatment tank:1. oil phase tank and water phase tank2. Structure: open (half-open) type, with three feet and mixer.1.3 Vacuum systemAdopting water ring type vacuum pump1.4 Hydraulic systemComposed of oil cylinder, solenoid valve, over-fall valve, oil box, and pressure- keeping valve.1.5 Electric control system (PLC control)Vacuum Emulsifying Machine have different options by client:1) material can be SS304 or SS316L . 2) heating can be by electrical or steam.3)PLC/HMI control or common button control .Machine composite：   The machine includes vacuum emulsifying mixer tank,water phase tank ,oil phase tank, vacuum pump, hydraulic system, tilting system. ,pipeline and electric control system.

Technology data :
