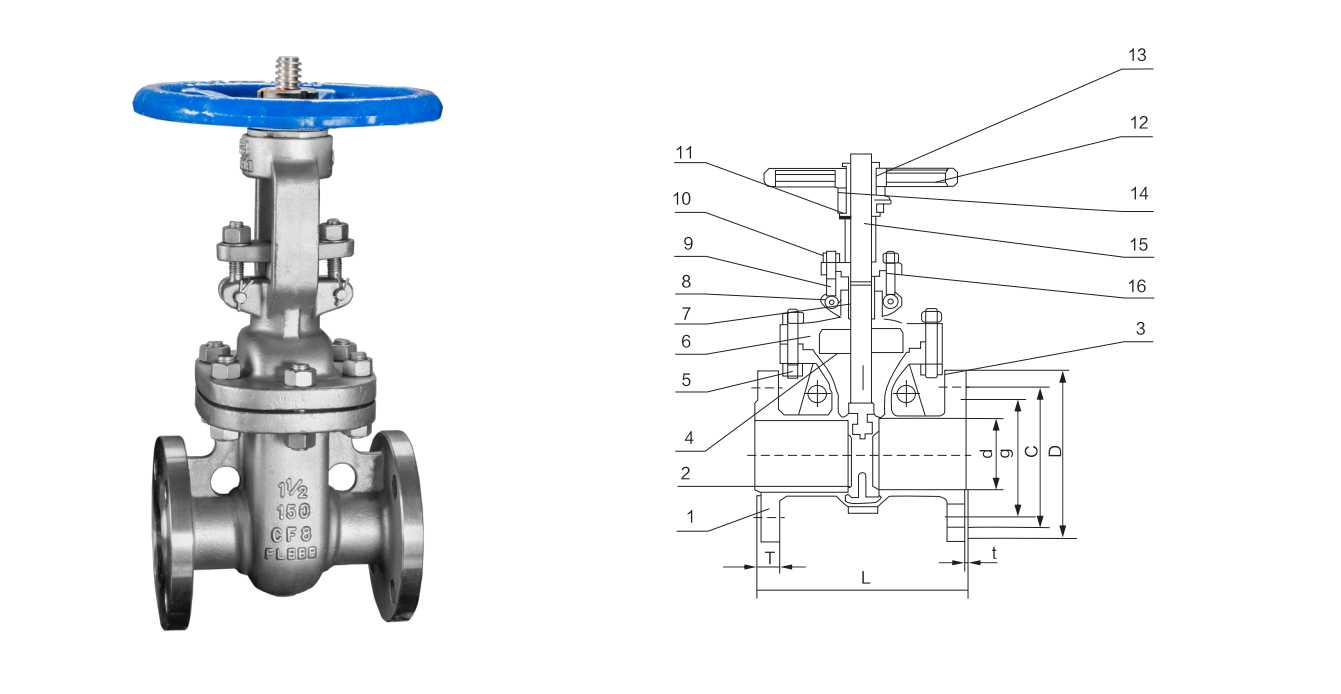

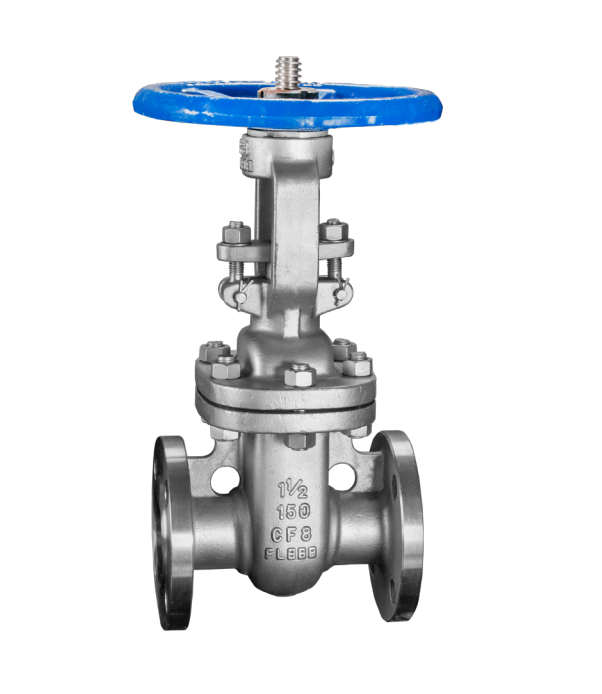

Stainless Steel Gate Valve Flange Ends

日标法兰闸阀

Stainless Steel Gate Valve Flange Ends

Full Port JIS 10K

Model No.: YLJY-010

产品特点 Feature

1. 法兰连接 Flange Connection

2. 全通径设计 Full port design

3. 精密铸造工艺 Investment cast body

4. 压力 10K/20K Pressure:10K/20K

5. 强度测试 Strength test:0.6Mpa

6. 气压 Gas seal test：0.6Mpa

7. 介质：水、油、气体、硝酸类、醋酸类   Applicable Media:Water、Oil、Gas、Nitric acid Acetic acid

8. 连接尺寸 Size:1/2"-12"

技术参数 Technical Specification

1. 生产设计标准 Basic Design and manufacture according toB2002

2. 结构长度 Face to-face according to B2002 10K Form 6

3. 法兰连接标准 Flange end according to B2002 10K

4. 检测标准：Inspection and tested according to JIS B2003
