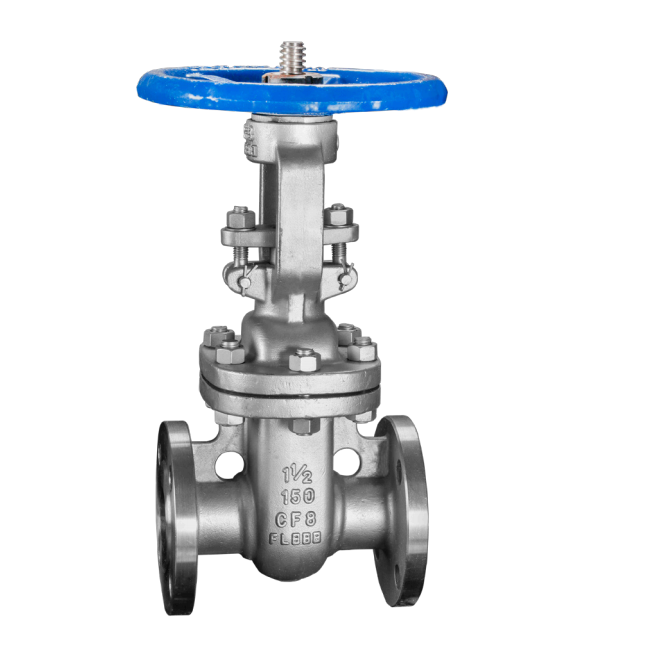

Stainless Steel Gate Valve Flange Ends

美标法兰闸阀

Stainless Steel Gate Valve Flange Ends

Full Port ASME 150Lb

产品特点 Feature

1. 法兰连接 Flange Connection

2. 全通径设计 Full port design

3. 精密铸造工艺 Investment cast body

4. 压力 150 磅 Pressure:150LB

5. 强度测试 Strength test:3.0Mpa

6. 气压 Gas seal test：0.6Mpa

7. 介质：水、油、气体、硝酸类、醋酸类   Applicable Media:Water、Oil、Gas、Nitric acid Acetic acid

8. 连接尺寸 Size:1/2"-12"

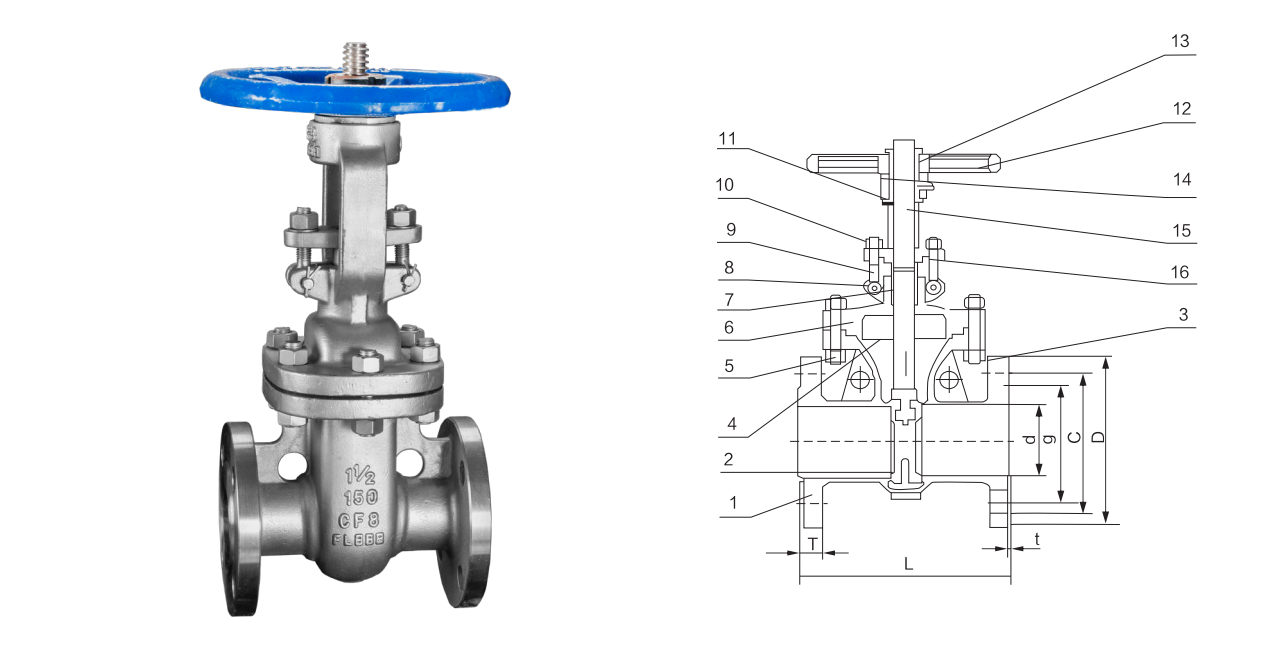

技术参数 Technical Specification

1. 生产设计标准 Basic Design and manufacture according to ASME B16.34

2. 结构长度 Face to-face according to ASME B16.10

3. 法兰连接标准 Flange end according to ASME B16.5

4. 检测标准：Inspection and tested according to API 598
