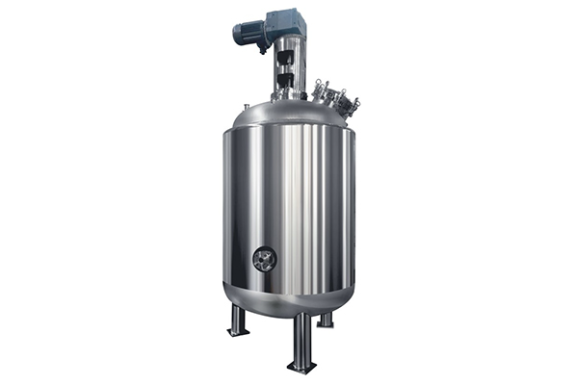

Stainless Steel Preparation Tank

Product Description:

Usage：Mixing tank is used to mix one or several materials together according to the technological proportions. Which can fit pharmaceutical and food industrial GMP & FDA requirement .Mixing tank is one kind of liquid preparation equipment,it is required for the deployment of the material dissolved in the solvent of the quantitative,reach a certain concentration or content.and the bleaching & filtering process to obtain solution for other proceed,it is in the pharmaceutical industry as syrup solution,water injection,infusion solution,lyophilized powder etc.Characteristic： 1) Volume we can produce from 5L --0000L.2) Material we can use SS304 and SS316L.etc. 3) It can used in single layer or double jacket layers.4) Jacket can be used different type : single full jacket .limpet coil jacket and dimple type jacket.5) Jacket can be used for heating and cooling .6) Top mounted agitator : propeller type ,anchor type ,high shear emulsify type and scraper type etc.7) Bottom mounted agitator: magnetic agitator ,high shear emulsifying agitator.8) Insulation material can use mineral wool ,rock wool ,PUF etc.9)Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor .temperature sensor ,pressure sensor ,load cell ,PH sensor,PO2 sensor ,safety valve,sampling valve etc.10) Tank can be CIP/SIP online.11) Control panel :PLC /HMI automatic control or common button control .12) Inside shell mirror polish Ra<0. 4um ,outside shell polish Ra<0.8um.

Item	Technology specification
Working volume L	20-30000L
material	SS316L or SS304
Tank structure	Single layer ,double layer
Jacket structure	Single full jacket ,limpet coil jacket ,dimple jacke
Jacket medium	Heating by steam ,hot water and electrical Cooling by chiller
Top mounted agitator	Propeller type agitator ,anchor type agitator ,scraper type agitator ,high shear emulsifying agitator
Bottom mounted agitator	Bottom magnetic type agitator ,bottom high shear emulsifying agitator
Equipment of tank	Manhole (handhole ),CIP spray ball,vent filter,sight glass,sight light ,safety valve ,sampling valve ,level snesor ,temperature sensor,pressure gauge,load cell,PH sensor ,PO2 sensor,foam sensor ,flush bottom valve ,VFD etc. the equipment choose according to the production process requirement
CIP/SIP system	Tank with the pipeline can be online CIP/SIP

Components Item	Function and usage
CIP spray ball	Wash &clean tank inside surface and devices automatic ,which should connect to the CIP machine station
Vent filter	Filter air to prevent the bacteria into the tank ,also can release the tank inside pressure.
Temperature sensor (gauge)	Indicate inside tank temperature and PID temperature control with the necessary valve and fittings
Pressure sensor (gauge)	Indicate the inside tank pressure
PH sensor	Indicate the product PH data
PO2 sensor	Indicate the product Oxygen content
Level sensor (gauge)	Indicate the inside tank product level height ,there are have different models :(static) pressure type ,ultrasonic type ,radar type ,glass tube type ,plate sight glass type .
Load cell	Indicate the product weight
VFD ( inverter )	Control and adjust agitator speed
Safety valve	Release inside tank pressure to protect the tank safety
Flow meter	Indicate the solution inlet and outlet volume
Sight light	Indicate inside tank bright for watching easily
Manhole (handhole )	Charge solid product into tank ,also can be used for maintenance inside tank components.
Sampling valve	Take inside tank products sample for offline checking
